| DL-E 06-165/T (For Universal Use! -Metal Ceiling Speakers) |
 |

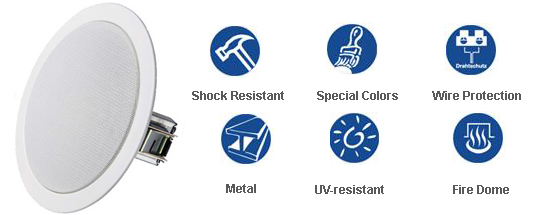

| The modern metal ceiling speaker DL 165 made of powder-coated metal, alternatively in RAL 9010 (white) high-quality 165mm full range speaker for universal use. |
| Features : |
 Spring clamps with cropped leg spring, increased clamp force and shortened tension distance. This allows quick and easy mounting. |
| Plain installation in false ceilings won't cause problems anymore. |
| You can order all ceiling speakers in different RAL-colours at a surcharge. |
| The optional fire dome F165 increases passive security. |
| The fire dome prevents the suction effect in false ceilings in case of fire. All metal versions of our models products have successfully passed these building material tests, and can therefore be classified as fire resistant. |
|
| Technical Specifications: |
| Technical Specifications |
DL-E 06 165/T |
| Power |
6 / 3 / 1.5W |
| Frequency Range |
64-19385 Hz |
| SPL 1W / 1m |
94.9dB |
| SPL Pmax / 1m |
105.3dB |
| Dimensions |
200 X 65mm |
| Ceiling Cut-out |
170mm |
| Temperature Range |
-200 to +800C |
| Dispersion Angle (-10dB) |
1800 (H) / 1800 (V) |
| Weight |
0.875 Kg. |
| Mounting |
Quick Fit Mounting |
| Colour |
RAL 9010 |
|
| |
